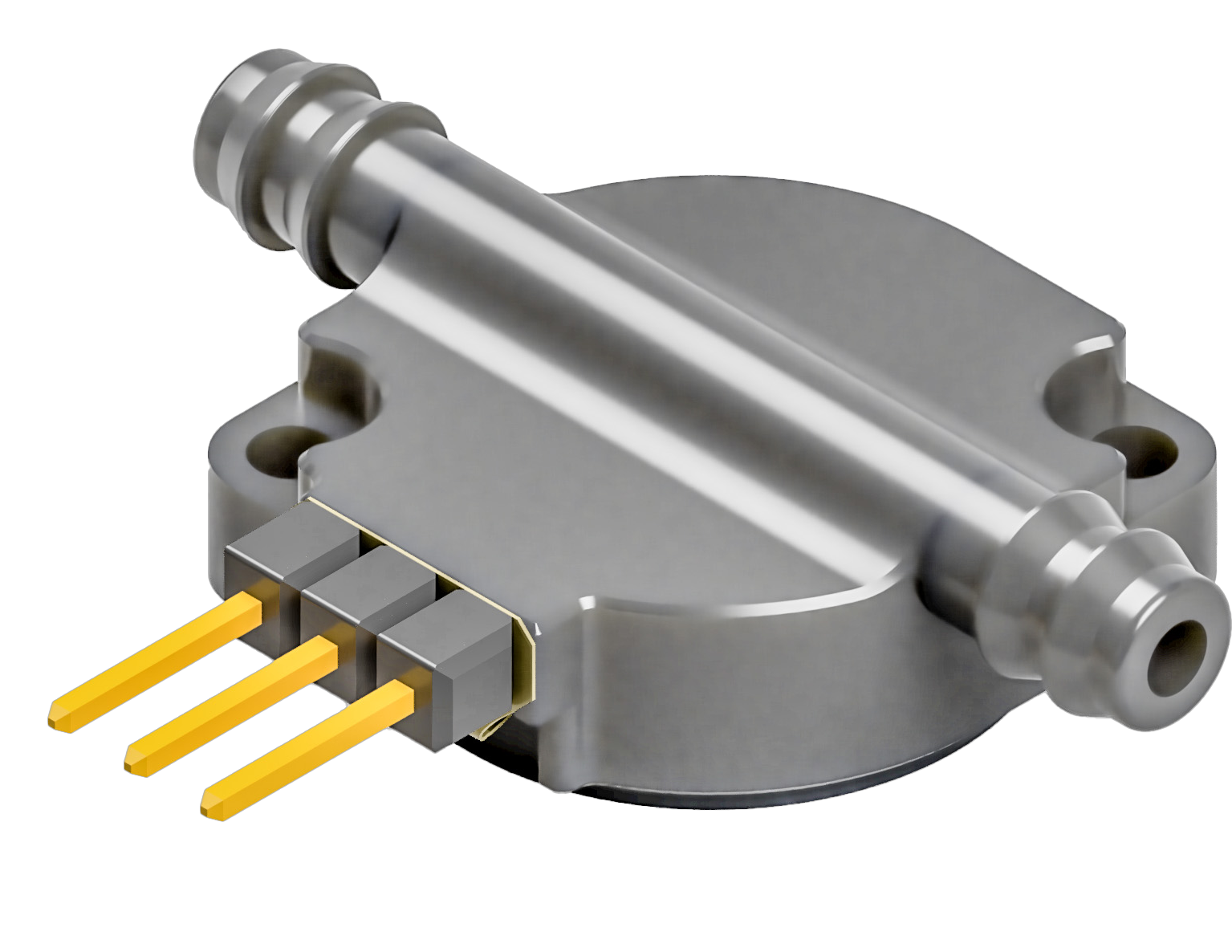

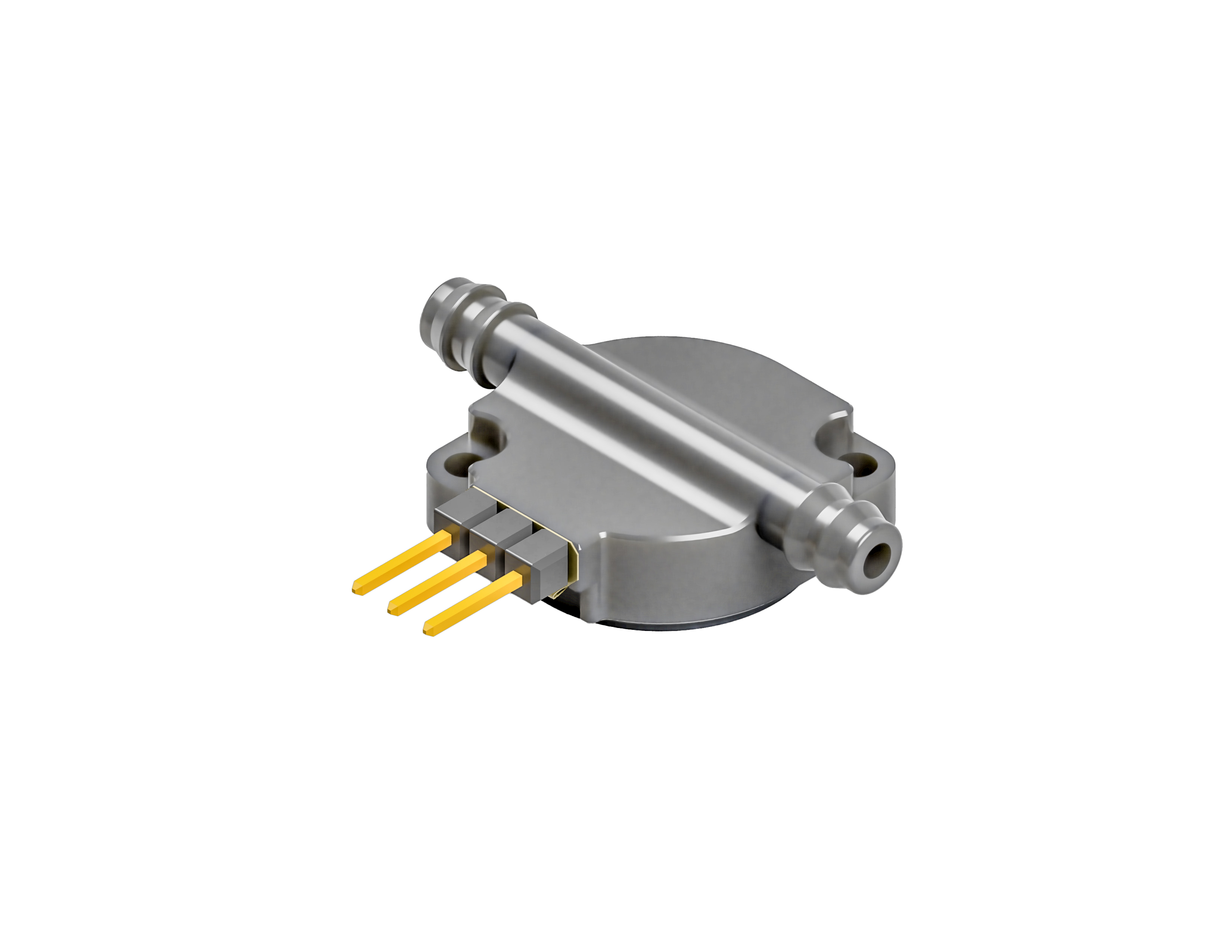

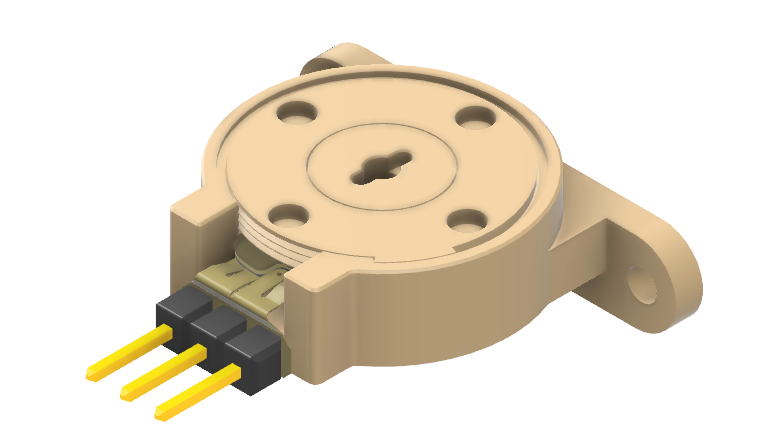

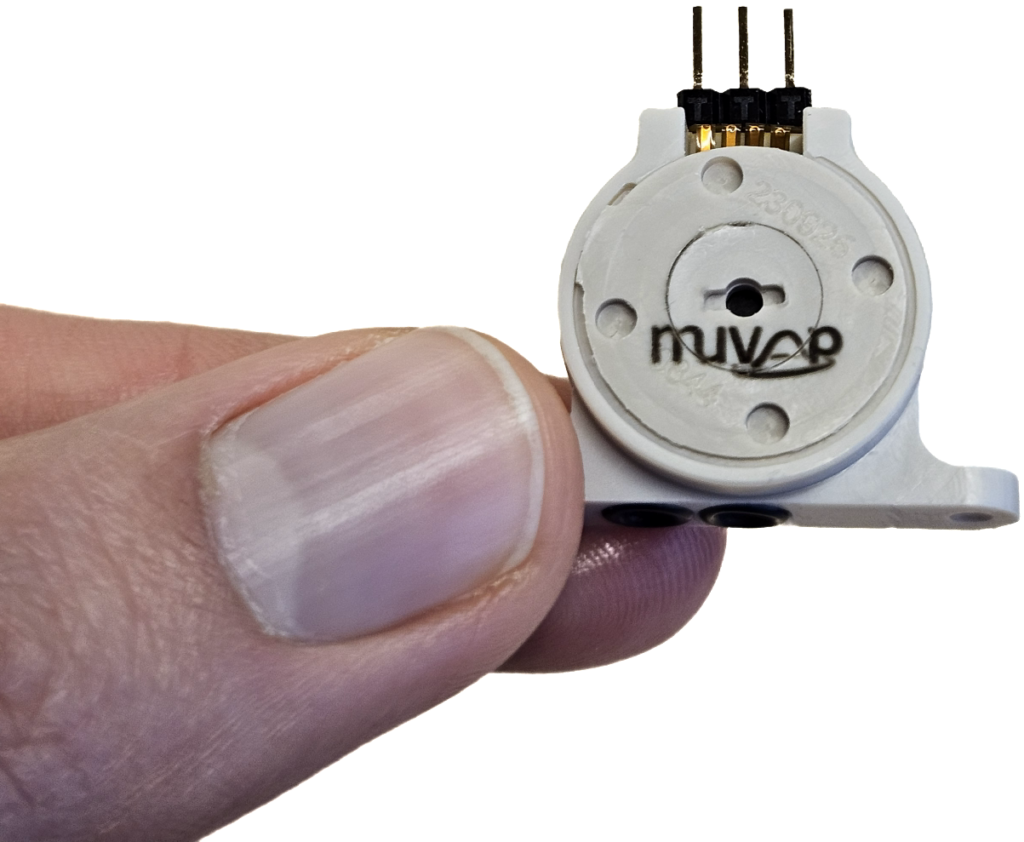

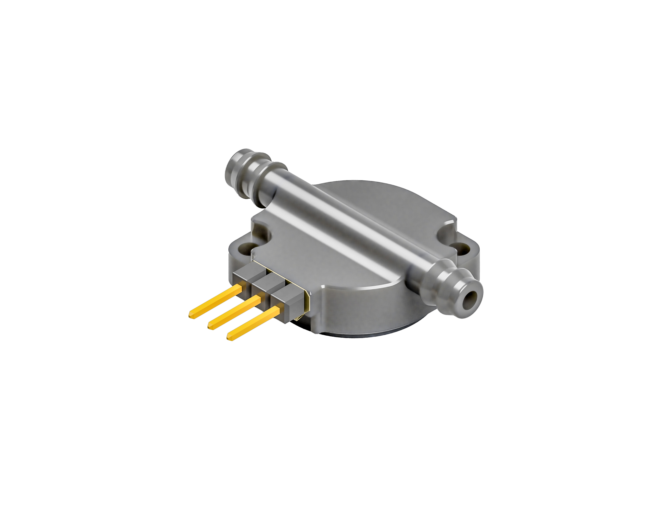

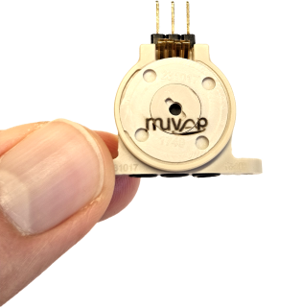

muVaP valves provide a unique set of characteristics. They can cover a wide range of pressures/flowrates, and offer ultra-energy efficiency, fast response time, compact size, light weight, long life-time, silent operation, and no heat generation.

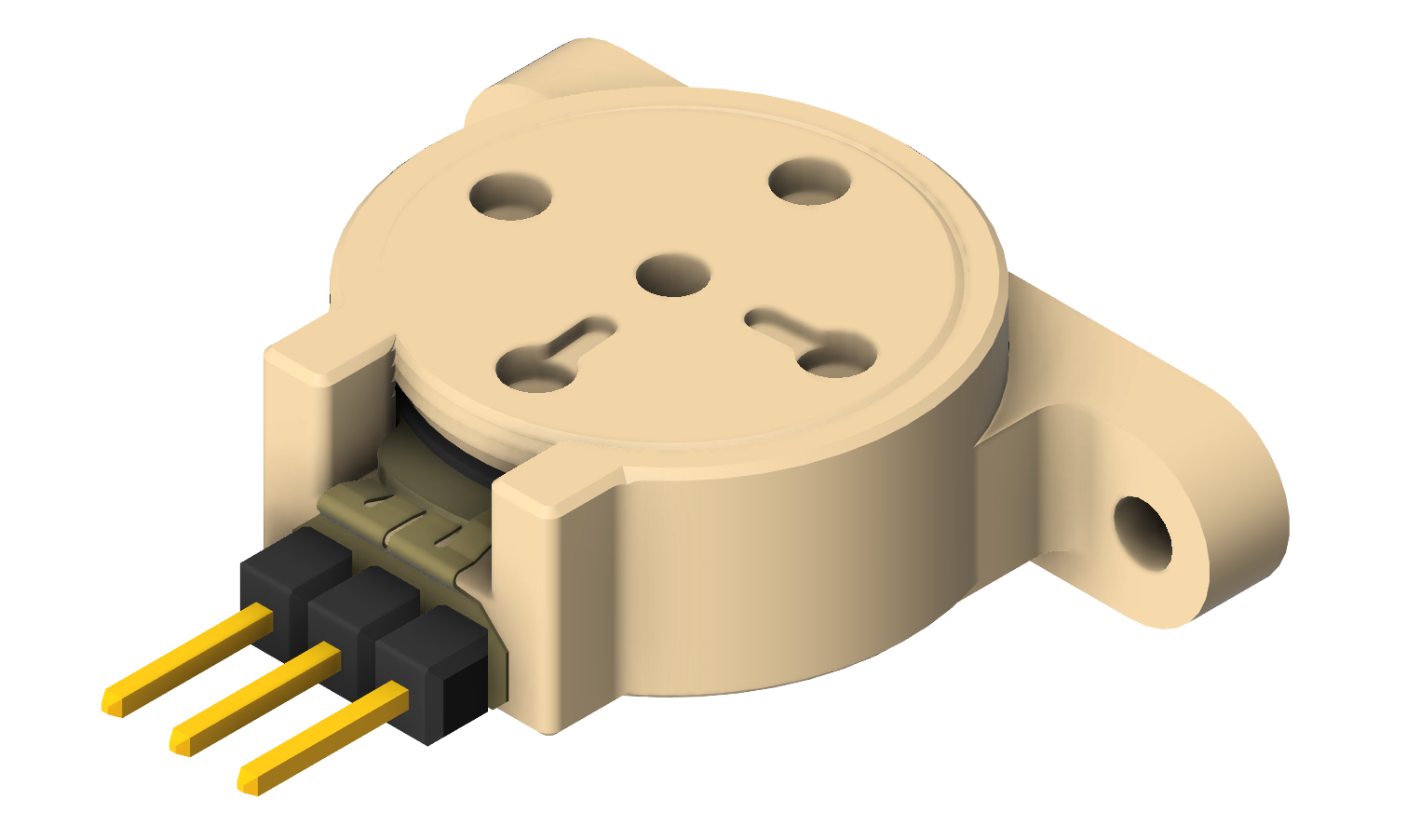

| Valve 3/2 | VALUE |
| Valve Type | 3/2 |
| Pressure | Up to 10 bar |
| Flowrate | Up to 50 l/min |
| Valving media | Gases |

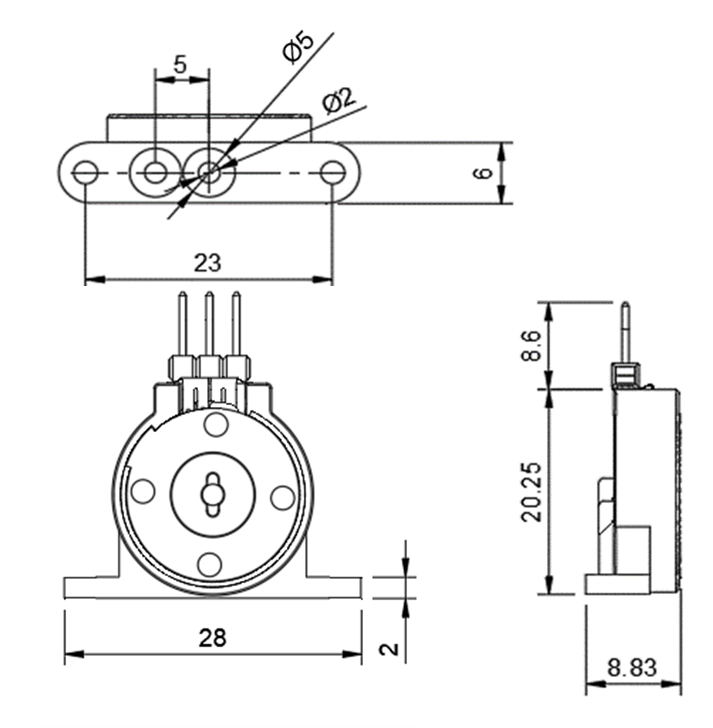

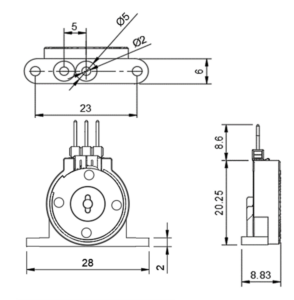

| Dimensions (without connectors) | 18 x 19 x 8 mm |
| Fluidic connection | Barbed (6 mm) |
| Orifice diameter | 2.0 mm |
| Switching time | < 10 ms |
| Electric connector | Pin connector |
| Total power consumption | Driver in steady-state: 35 mW |
| Noise | Silent |
We are here to address your requests for even higher ranges of operation. Feel free to contact us for any specific information!
